TACTICAL STRENGTH. BALLISTIC SECURITY. BUILT TO SURVIVE.

Whether it’s navigating conflict zones, escorting convoys, or serving as a rapid-response unit, this armoured Hilux GR Sport is built for mobility under fire.
Request Catalog

Product Category: Civilian

TOYOTA HILUX TRUCK

Base Vehicle Specifications

  • Year:
  • 2026
  • Make:
  • Toyota
  • Model:
  • Hilux GR Sport
  • Armour Level:
  • VPAM BRV 2009 VR7
  • Transmission:
  • 6-speed automatic
  • Engine:
  • 2.8L turbo diesel
  • Horsepower:
  • 204 HP
  • Drivetrain:
  • 4WD
  • Dimensions (MM):
  • Request Brochure
  • Wheelbase (MM):
  • Request Brochure
  • Seating Capacity:
  • 4-5 personnel
  • Fuel Capacity:
  • 80L (armoured tank)

Feel free to request for alternate models, trims and engine sizes.

Precision Engineered

360° Protection

The VPAM 7 Armoured Toyota Hilux GR Sport is a rugged, performance-tuned pickup that’s been transformed into a military-grade security vehicle—engineered to operate in some of the world’s most hostile environments. Fusing the legendary reliability of the Toyota Hilux with advanced VPAM BRV 2009 VR7-certified protection, this platform is ideal for security forces, government agencies, private military contractors, and asset protection teams.

Whether it’s navigating conflict zones, escorting convoys, or serving as a rapid-response unit, this armoured Hilux GR Sport is built for mobility under fire.

Tested and certified to VPAM BRV 2009 VR7, the vehicle offers 360° ballistic protection against:

  • 7.62x51mm NATO rounds
  • Intermediate and armor-piercing threats (e.g. 7.62x39mm, 5.56x45mm SS109)
  • Fragmentation and lateral blast damage from hand grenades (ERV 2010 compliant)

Each vehicle undergoes rigorous testing and independent certification, ensuring maximum occupant protection in real-world threat scenarios.

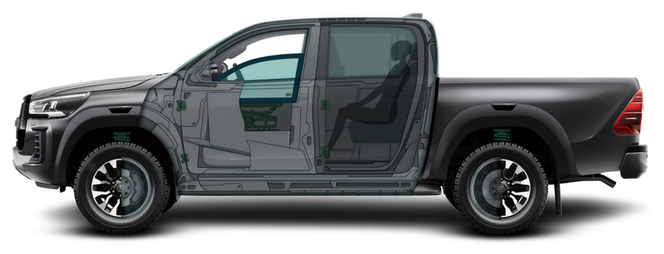

The passenger cabin is fully armored with large, uninterrupted ballistic plates composed of premium-grade armored steel for maximum protection.

Vehicles are equipped with fully armored doors, floor panels, roofs, and ballistic overlaps, creating an uncompromised level of security.

Critical structural points are reinforced for durability and reliability, while other modifications may be made to maintain vehicle characteristics.

BLS armoring materials are manufactured to reflect the vehicle’s original design while enforcing a high level of security that remains discreet.

All armoring designs are prototyped and subsequently fabricated by our engineers and are proprietary to our organization.

Ballistic standards are tested by accredited 3rd-party laboratories to certify bullet resistance to internationally accepted standards.

Standard Features For

BLS Armoured TOYOTA HILUX TRUCK

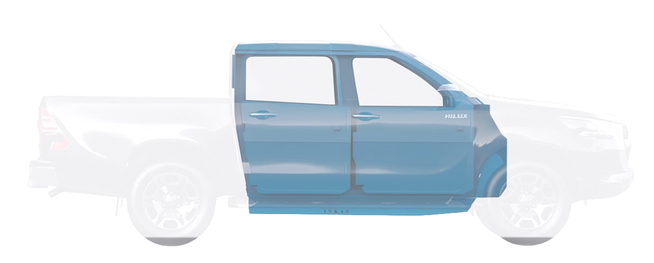

360º perimeter protection

The passenger cabin, roof and floor of the vehicle are protected from ballistic fire and blasts to ensure the safety of all passengers.

Military grade ballistic glass

High-quality ballistic glass provides protection from every angle, while maintaining a clear view and replicating the OEM model’s curve for near undetectable armoring.

Armored door overlap system

BLS proprietary ballistic door overlap system features a ballistic overhang edge to prevent ammunition from penetrating the door seams.

Rear armored bulkhead partition

An armored rear bulkhead with an integrated swing-out door allows protected access between the cabin and trunk.

Military grade runflat system

Solid polycarbonate inserts reinforce the structure of the rims in order to enable continued vehicle operation and driving stability in the event that tires are punctured.

Fuel tank protection

The armored enclosure shields the fuel tank to prevent penetrations that could trigger a critical failure through fire or explosion.

BLS Armoured TOYOTA HILUX TRUCK

Vehicle Key Features

1. Ballistic & Blast Protection

  • Full VPAM 7-certified armouring using high-hardness ballistic steel and composite panels
  • Multi-layer bullet-resistant glass with anti-spall inner layer
  • Roof and underbody protection against grenade and light IED blasts
  • Armoured battery, fuel tank, ECU, and critical components
  • Reinforced structural pillars, hinges, and door overlaps
  • Run-flat tyre system capable of maintaining mobility after deflation
  • Optional: escape hatch, gun ports, external surveillance cameras, fire suppression

2. Performance & Platform

  • Base Model: Toyota Hilux GR Sport
  • Engine: 2.8L turbo diesel engine (204 hp, 500 Nm torque)
  • Transmission: 6-speed automatic with 4WD
  • Suspension: Upgraded GR Sport suspension with enhanced shocks, tuned for armoured weight
  • Braking: Reinforced brakes and load-sensitive proportioning

3. Tactical Interior & Utility

  • Configurable seating for 4-5 personnel
  • Option for communications system, tactical lighting, and GPS tracking
  • Rear tray can be outfitted for equipment storage, drone deployment, or ballistic shield racks
  • Dual-zone climate control, infotainment screen, and driver assist features retained
  • Optional blackout mode and red-light tactical interior

TECHNICAL SPECIFICATIONS



  • Ballistic Rating: VPAM BRV 2009 VR7 / ERV 2010
  • Curb Weight (Armoured): Approx. 4,500 – 4,900 kg
  • Payload Capacity: Up to 600-700 kg (depending on configuration)
  • Top Speed: ~130-150 km/h (governed for safety)
  • Fuel Tank: Armoured, 80L capacity
  • Run-Flat Range: 50-80 km post-deflation

APPLICATIONS



  • Military patrol or recon missions
  • Government and presidential escort fleets
  • Diplomatic motorcade support
  • Anti-smuggling and border patrol operations
  • Private security and tactical response teams
  • High-value asset transport

Take Action for Your Safety

Get in touch with an armored specialist to inquire about this package.
