TOYOTA COASTER

GROUP TRANSPORT WITH CERTIFIED BALLISTIC PROTECTION

The VPAM 7 Armoured Toyota Coaster Bus delivers the rare combination of high-capacity passenger transport and battle-tested ballistic protection.

Product Category: Commercial

Base Vehicle Specifications

Feel free to request for alternate models, trims and engine sizes.

Precision Engineered

360° Protection

The VPAM 7 Armoured Toyota Coaster Bus is the gold standard in secure passenger transport, purpose-built for high-risk environments where safety and capacity are critical. With seating for up to 18 occupants and certified VPAM BRV 2009 VR7 protection, this vehicle is engineered to safeguard diplomats, corporate teams, security personnel, and aid workers while in transit.

Trusted by governments, embassies, NGOs, and private security providers, the armoured Coaster balances functionality, comfort, and military-grade ballistic resistance—making it one of the most reliable secure mobility platforms for mass personnel movement.

This vehicle is certified to VPAM BRV 2009 VR7, the German ballistic testing standard recognised globally for its stringent protection criteria. It offers protection against:

7.62x51mm NATO rifle rounds
Armor-piercing ammunition and automatic weapons fire
Grenade fragments and lateral blast effects (ERV 2010 compliant)

Each vehicle undergoes independent testing to ensure survivability in the event of armed attacks or explosive threats.

The passenger cabin is fully armored with large, uninterrupted ballistic plates composed of premium-grade armored steel for maximum protection.

Critical structural points are reinforced for durability and reliability, while other modifications may be made to maintain vehicle characteristics.

BLS armoring materials are manufactured to reflect the vehicle’s original design while enforcing a high level of security that remains discreet.

All armoring designs are prototyped and subsequently fabricated by our engineers and are proprietary to our organization.

Ballistic standards are tested by accredited 3rd-party laboratories to certify bullet resistance to internationally accepted standards.

Standard Features For

BLS Armoured TOYOTA COASTER

360º perimeter protection

The passenger cabin, roof and floor of the vehicle are protected from ballistic fire and blasts to ensure the safety of all passengers.

Military grade ballistic glass

High-quality ballistic glass provides protection from every angle, while maintaining a clear view and replicating the OEM model’s curve for near undetectable armoring.

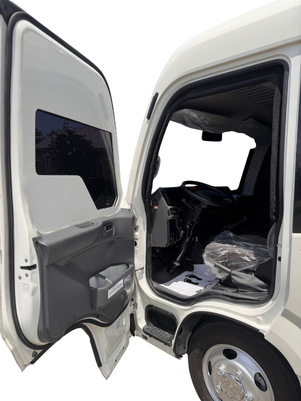

Armored door overlap system

BLS proprietary ballistic door overlap system features a ballistic overhang edge to prevent ammunition from penetrating the door seams.

Rear armored bulkhead partition

An armored rear bulkhead with an integrated swing-out door allows protected access between the cabin and trunk.

Military grade runflat system

Solid polycarbonate inserts reinforce the structure of the rims in order to enable continued vehicle operation and driving stability in the event that tires are punctured.

Fuel tank protection

The armored enclosure shields the fuel tank to prevent penetrations that could trigger a critical failure through fire or explosion.

BLS Armoured TOYOTA COASTER

Vehicle Key Features

1. Ballistic & Blast Protection

Full perimeter VPAM 7-rated armouring using ballistic steel and composite panels
Multi-layered bullet-resistant glass with internal anti-spall coating
Roof and underbody blast protection to counter grenades and IEDs
Armoured fuel tank, battery, and engine control modules
Door overlap protection and reinforced structural pillars
Run-flat tyre system (travel up to 80 km after deflation)
Optional features: escape hatch, emergency lighting, intercom, surveillance system

2. Powertrain & Platform

Base Model: Toyota Coaster (Standard or Long Wheelbase)
Engine: 4.0L or 4.2L diesel engine
Transmission: 5-speed manual or automatic
Suspension: Upgraded heavy-duty suspension to support armoured weight
Drivetrain: Rear-wheel drive with reinforced axles

3. Interior Layout & Comfort

Seating capacity: 14 to 18 passengers (configurable)
Durable, easy-to-clean interior finishes
Optional VIP executive seating (leather recliners, individual AC vents)
Dual-zone air conditioning and auxiliary rear climate units
Custom options: communication systems, CCTV, emergency escape tools

TECHNICAL SPECIFICATIONS

Ballistic Standard: VPAM BRV 2009 VR7 / ERV 2010
Curb Weight (Armoured): ~5,500 – 6,200 kg
Payload Capacity: ~800 kg
Top Speed (limited): 110 – 130 km/h
Fuel Tank: Armoured, 95L capacity
Run-Flat Range: Up to 80 km after tyre deflation
Seating: 14-18 passengers depending on interior configuration

APPLICATIONS

Government and security agency personnel transport
Diplomatic convoys and foreign embassy group movements
Corporate workforce transport in conflict-prone regions
NGO operations in humanitarian response zones
Oil, gas, and mining crew logistics in remote or high-risk areas

CONCLUSION

The VPAM 7 Armoured Toyota Coaster Bus delivers the rare combination of high-capacity passenger transport and battle-tested ballistic protection. Whether you’re moving diplomats, mission-critical teams, or security personnel, it ensures safe passage in even the most unpredictable operational landscapes. Trusted worldwide, it is the backbone of secure group mobility.
